4K Wireless Casting
Effortlessly share your laptop
screen on the big display with just
the click of a button. No software
is required – simply connect your
laptop to the speakerphone for a
seamless wireless casting experience
Camera Streaming
Connect your conference camera
without having a long cable. Access
1080P video wirelessly right from
your seat with ease, and keep your
video conference space clutter-free.
Plug & Play
No drivers or software are
required with Innex Connect,
making wireless conferencing
as easy as plug-and-play.

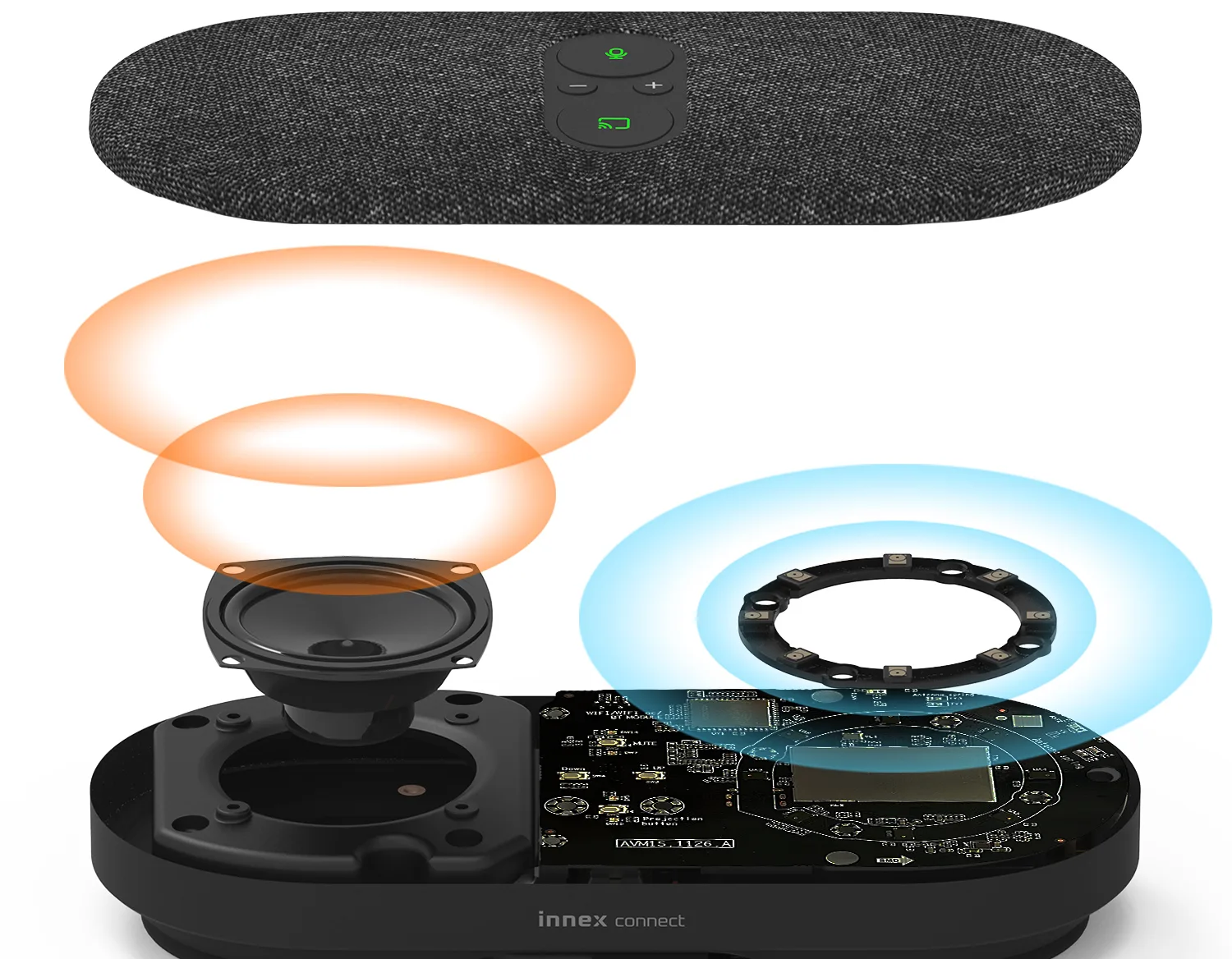

Vocal Enhancement
The powerful speaker and 8-mic
array are designed to enhance
human voice against background
noise and deliver immersive
sound effects for every meeting.
Specifications
Microphone
| Built-in Microphone | 8 MEMS Microphone for 360-degree pickup |
| Pick-up Distance | 4m / 13ft |
| Sensitivity | 94dB SPL@1KHz -37±1dB FS |
| Frequency | 20Hz – 8KHz |
| Sampling Rate | 48KHz |
| Beamforming | |
| Automatic Noise Suppression | |
| Full Duplex Audio | |
| Acoustic Echo Cancellation | |
| Automatic Gain Control |
| Speaker | 4Ω3W |
| Sensitivity | 1KHz 90dB SPL +3dB @0.5m @3W |
| Signal/Noise Ratio (SNR) | 50dB |
| Frequency Range | 200Hz~20KHz |
| Max. Sound Pressure Level | 95dB SPL @0.5m @3W |
| Max. Screen Output Resolution | 3840×2160 @30FPS |
| Max. Output Resolution | 1920×1080 @30FPS |
| Format Supported | H.264 |
| Frequency | 5GHz |
| Distance | Screen casting only: 8M Camera streaming for BYOM: 5M |
| I/O Interface | ST100 (speakerphone) : Type C PD + DP ALT RX100 (receiver) : HDMI ; TYPE C PD ; USB A 3.0 |
| Button | ST100 (speakerphone) : Mic on/off, Casting, Volume +/- RX100 (receiver) : Language switch |
| Operating System | Win 10/ 11; Mac 10.8 and Later |
| Product Dimensions | ST100 (speakerphone) : 180 x 81 x 32mm / 7.09 x 3.19 x 1.26″ RX100 (receiver) : 102 x 45 x 20mm/ 4.02 x 1.77 x 0.79″ |
| Product Weights | ST100 (speakerphone) : 385g / 13.58oz RX100 (receiver) : 70g / 2.47oz |
| Package Contents | Innex Connect (ST100 and RX100), 1.5m power cable (Type C-C), 1.5m HDMI Cable, 0.3m USB switch cable (Type C-A), USB-C to HDMI & USB-A Adapter, 0.5m USB 3.0 Extension Cable |
